Okta

Requirements

• An account in OKTA
• API_URL is the public DNS name of the hoop gateway instance

Contact the administrator of the hoop gateway instance to retrieve the API_URL address.

Identity Provider Configuration

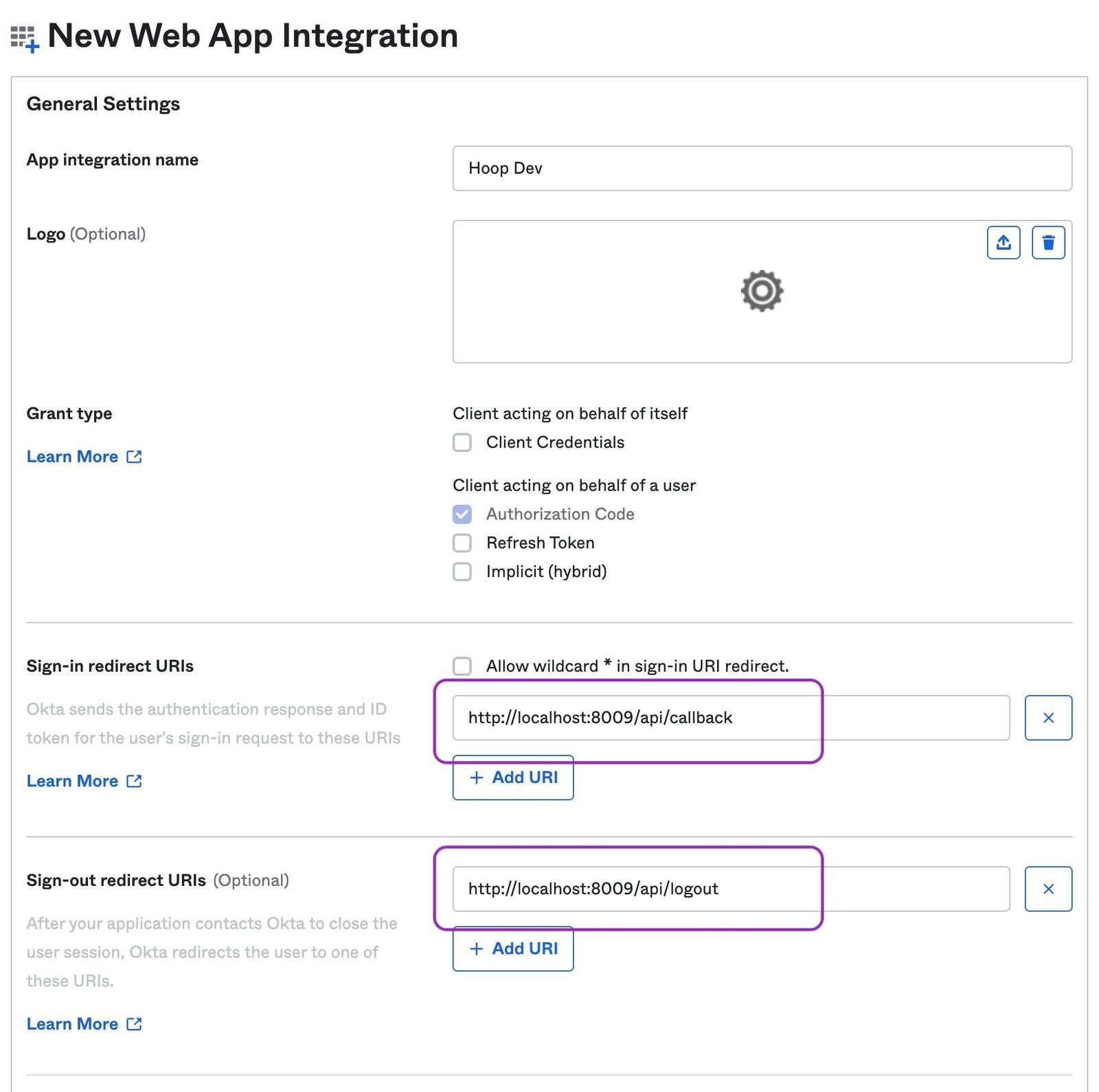

1. Create an Application

   • Go to Applications > Applications and click on the Create App Integration button
   • In Sign-in Method, select OIDC - OpenID Connect
   • In Application type, select Web Application
2. Configure the Redirect URIs

   • Signin redirect URIs: {API_URL}/api/callback
   • Signout redirect URIs: {API_URL}/api/logout

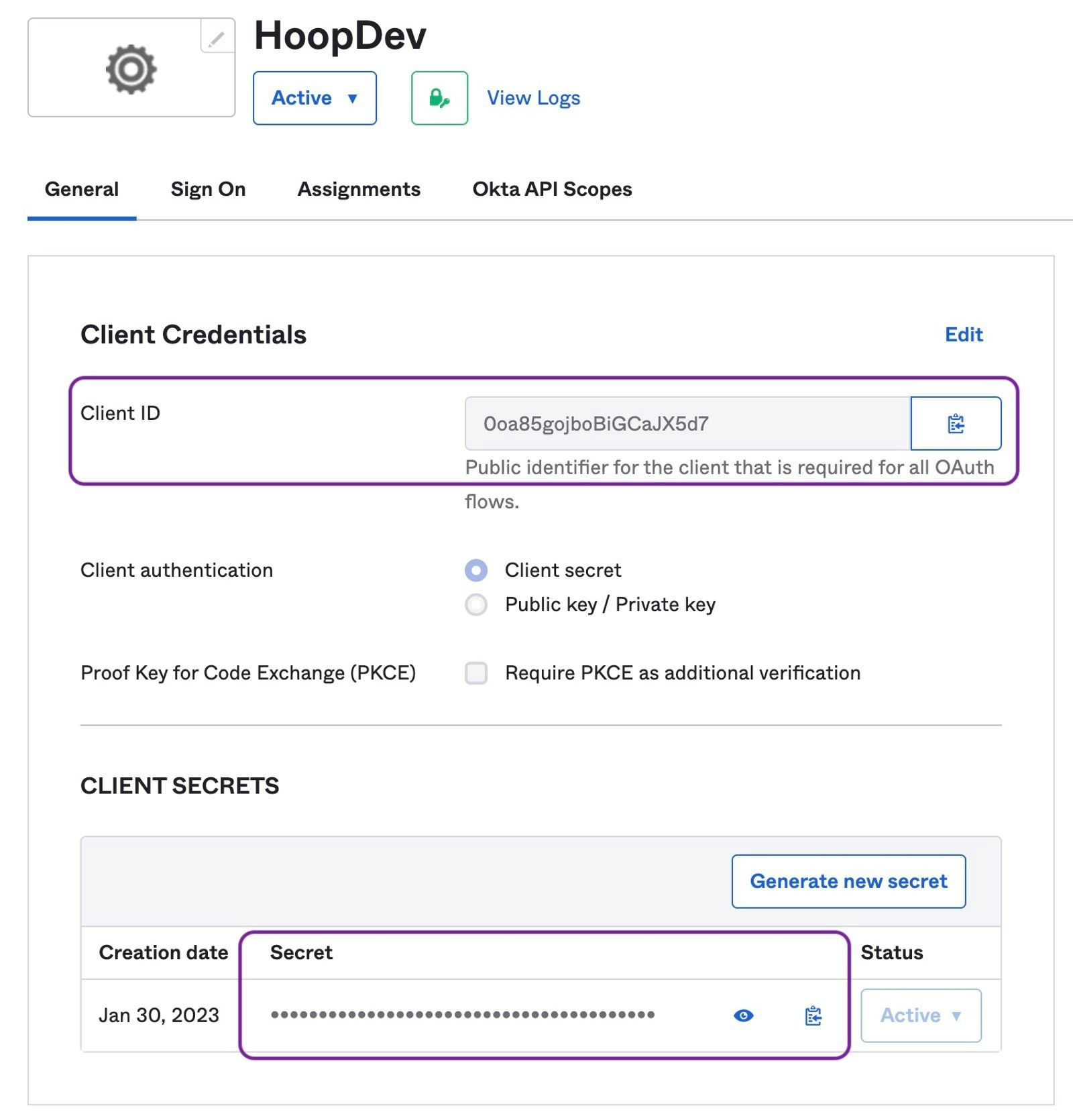

3. Collect the Credentials

   • In the Application Home copy the Client ID and Client Secret


4. Collect Issuer Information

   • The Issuer URI depends on the authorization server being used. Refer to this documentation.

   If Okta does not allow external applications to validate access tokens, append ?_userinfo=1 to the Issuer URL (e.g., https://your-org.okta.com/oauth2/default?_userinfo=1). This tells the gateway to authenticate using the userinfo endpoint instead of validating the token directly.

Configure Hoop Gateway

Web App

Go to Integrations > Authentication and fill in:

• Auth Method: OIDC
• Issuer URL: your Okta authorization server URI
• Client ID: the Client ID from above
• Client Secret: the Client Secret from above
• Groups Claim: groups

API

curl -X PUT {API_URL}/api/serverconfig/auth \
  -H "Api-Key: {API_KEY}" \
  -H "Content-Type: application/json" \
  -d '{
    "auth_method": "oidc",
    "provider_name": "okta",
    "oidc_config": {
      "issuer_url": "https://{YOUR_OKTA_DOMAIN}/oauth2/default",
      "client_id": "{CLIENT_ID}",
      "client_secret": "{CLIENT_SECRET}",
      "groups_claim": "groups"
    },
    "webapp_users_management_status": "active"
  }'

Configuring Groups

Explains how to configure groups claim to propagate when users sign in.

Refer to Okta’s Documentation for more information.

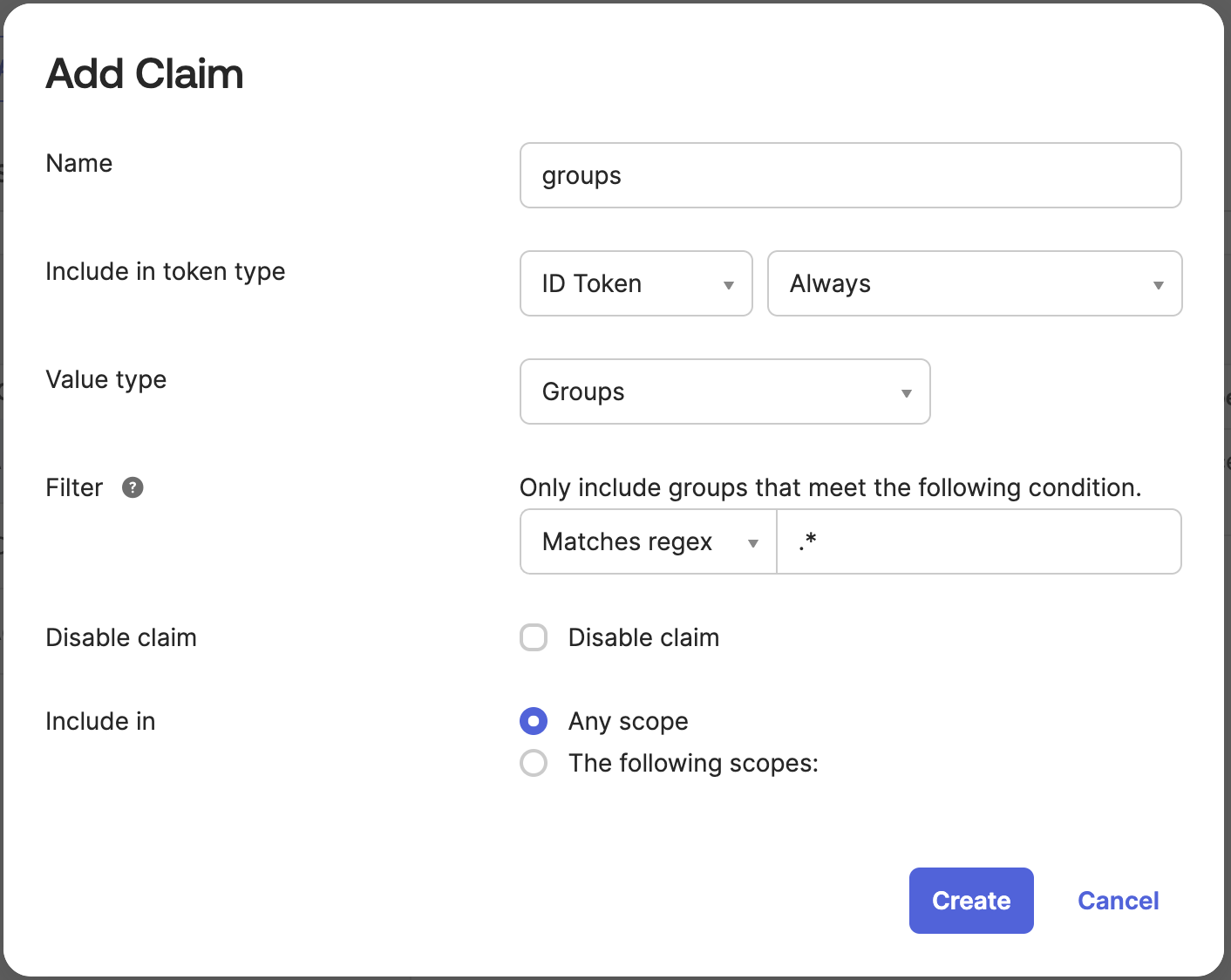

1. Add Groups Claims

   • Go to Security > API > {authorization server} > Claims
   • Click on Add Claims button

   Add the groups claim for the ID Token to any scope (image below)

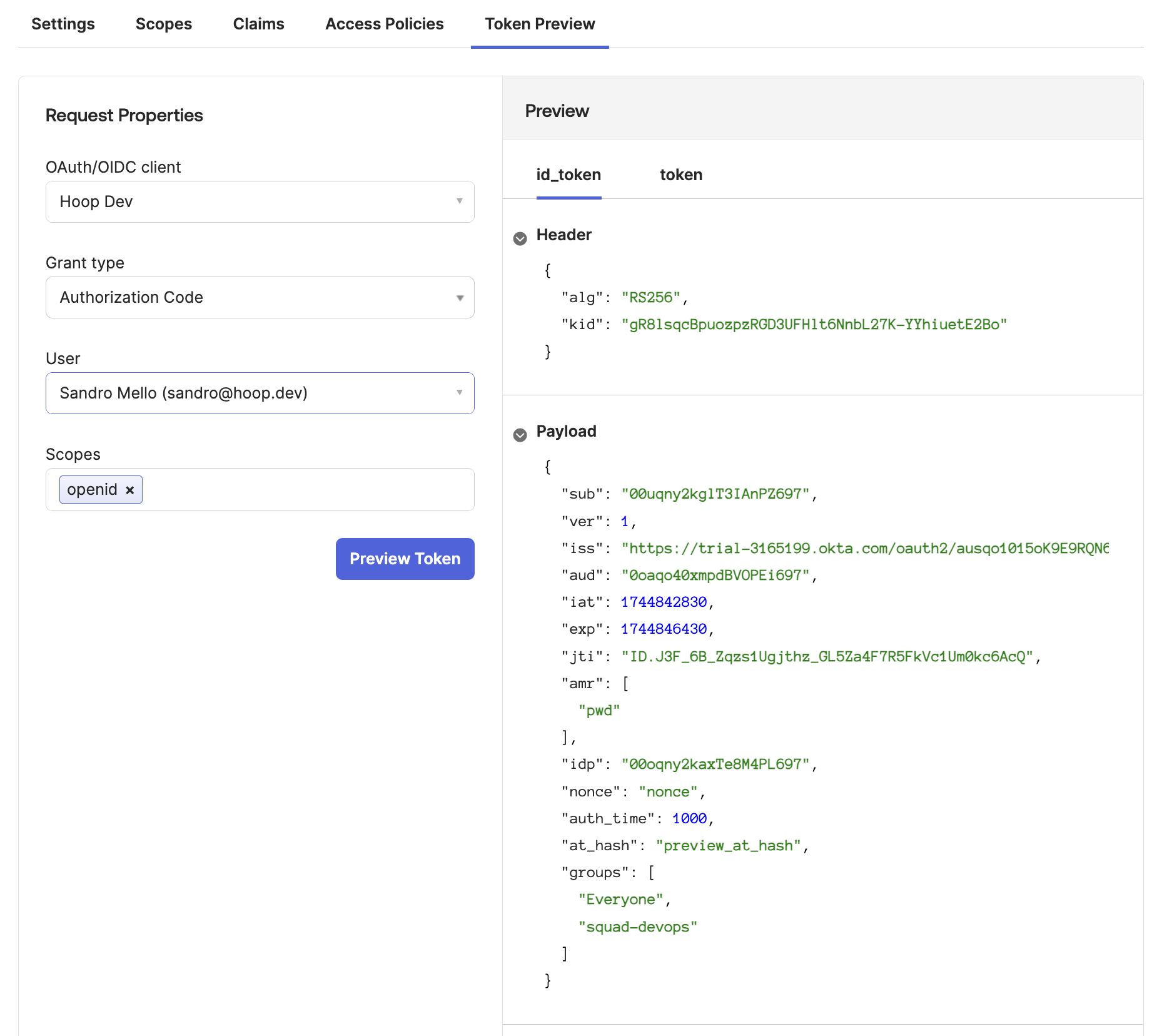

2. Token Preview Test

   This step validate if the configuration is returning the groups claim properly

   • Go to Token Preview tab
   • Select the Hoop Application
   • Select the Grant Type as Authorization Code
   • Select a user associated with this application
   • Add the scope openid

   The payload must appear with a claim named groups containing the groups associated with your application (image below)



   Please note that the groups claim will not be present when a user has no group assignments. Hoop synchronizes group information only when this attribute is configured. To prevent potential issues, ensure each user is assigned to at least one default group.

3. Verify Groups Claim in Hoop Gateway

   Ensure the Groups Claim field in Integrations > Authentication is set to groups to match the claim name configured above. This is the default value and usually requires no change.
